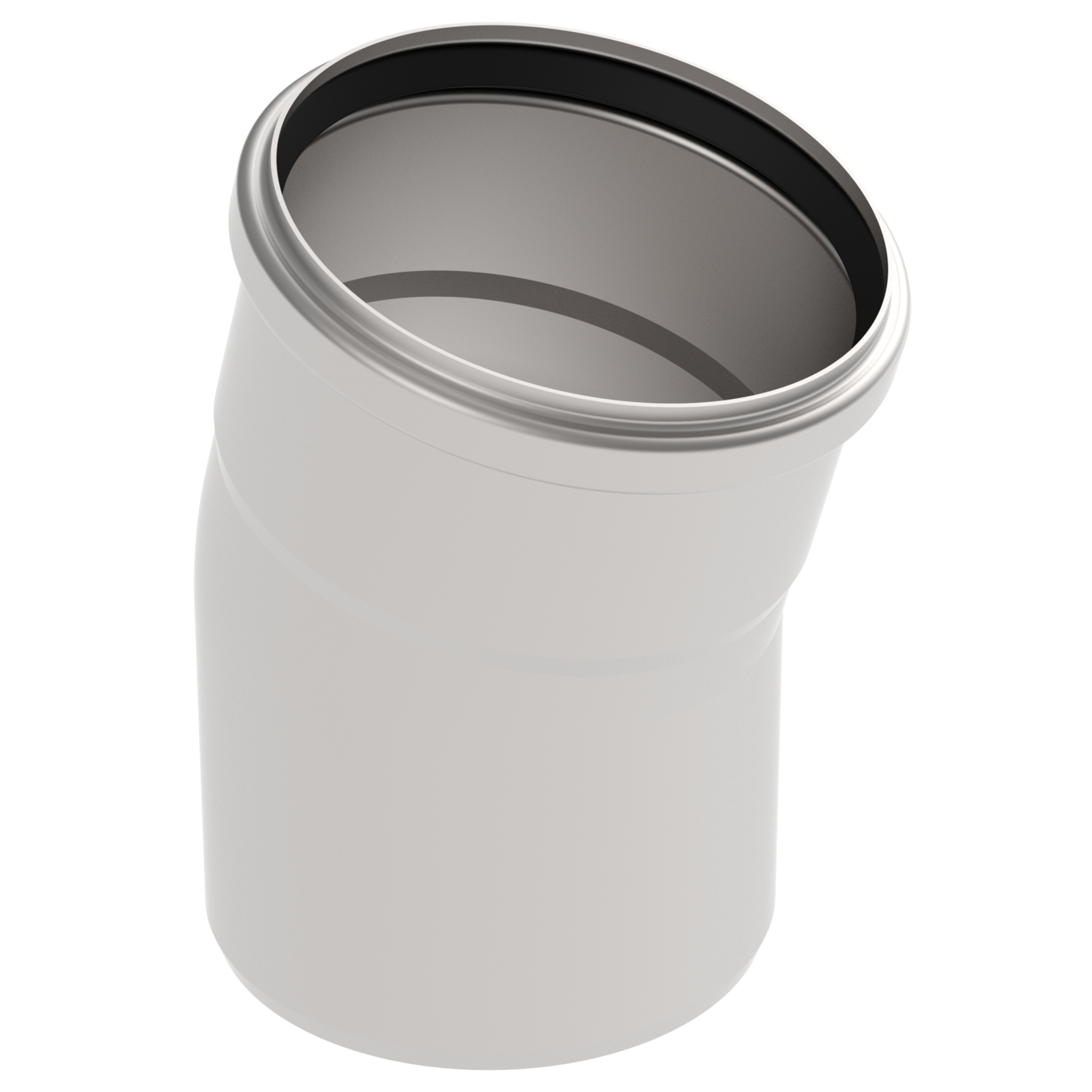

BEND 15° - (820.015.110)
×
![]()
Part Of the Series: Bend-15
Type no.: 820.015.110
EAN no.: 5705499401165
VVS no.: 160209110
RSK no.: 1550099
NRF no.: 2170036
LVI no.: 0240584

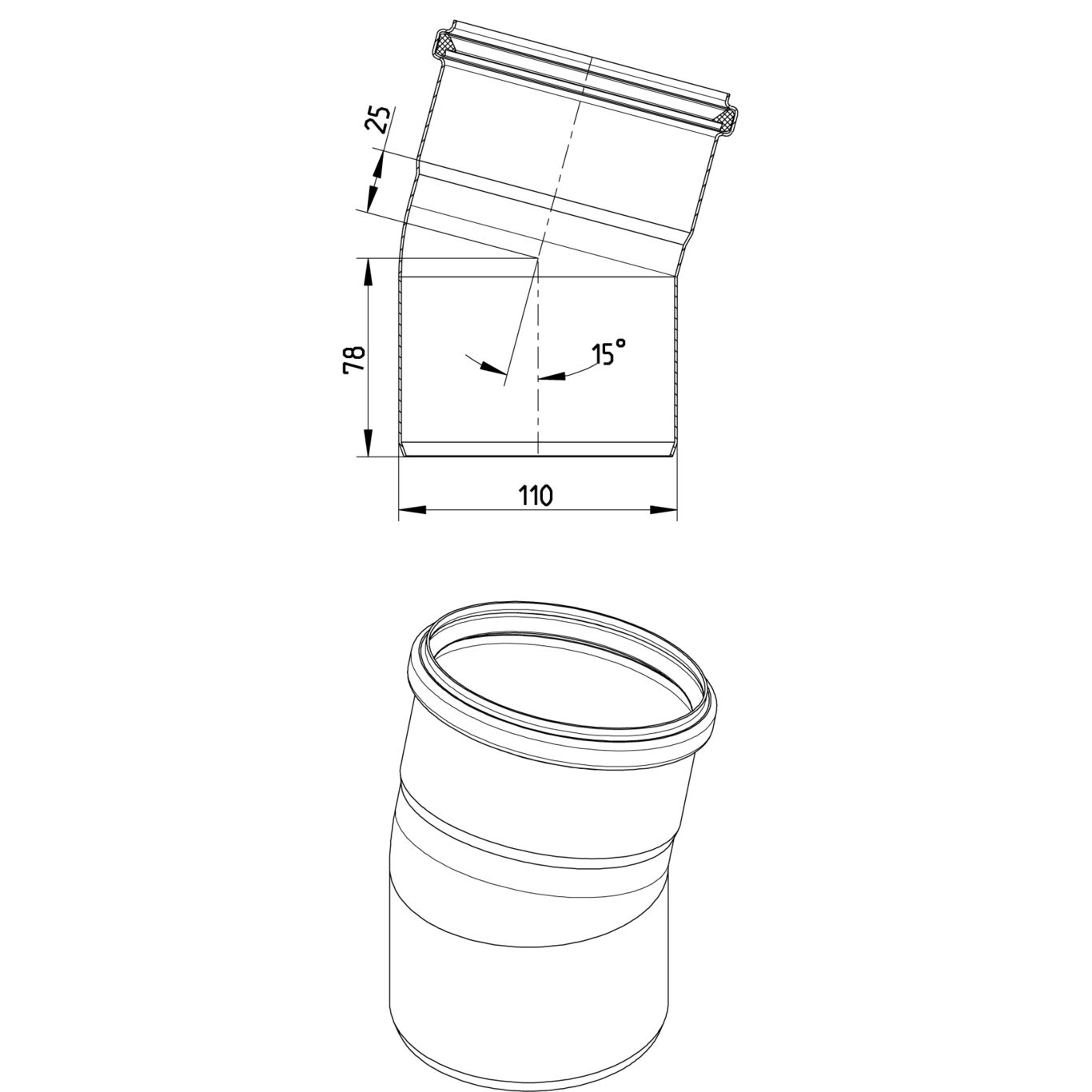

BEND 15°
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,47 |
| Weight (lbs) | 1,04 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
