FLANGE ADAPTOR - (850.015.110 S FL)
×
![]()
Part Of the Series: Adaptor-flange
Type no.: 850.015.110 S FL
EAN no.: 5705499409710
NRF no.: 2172677

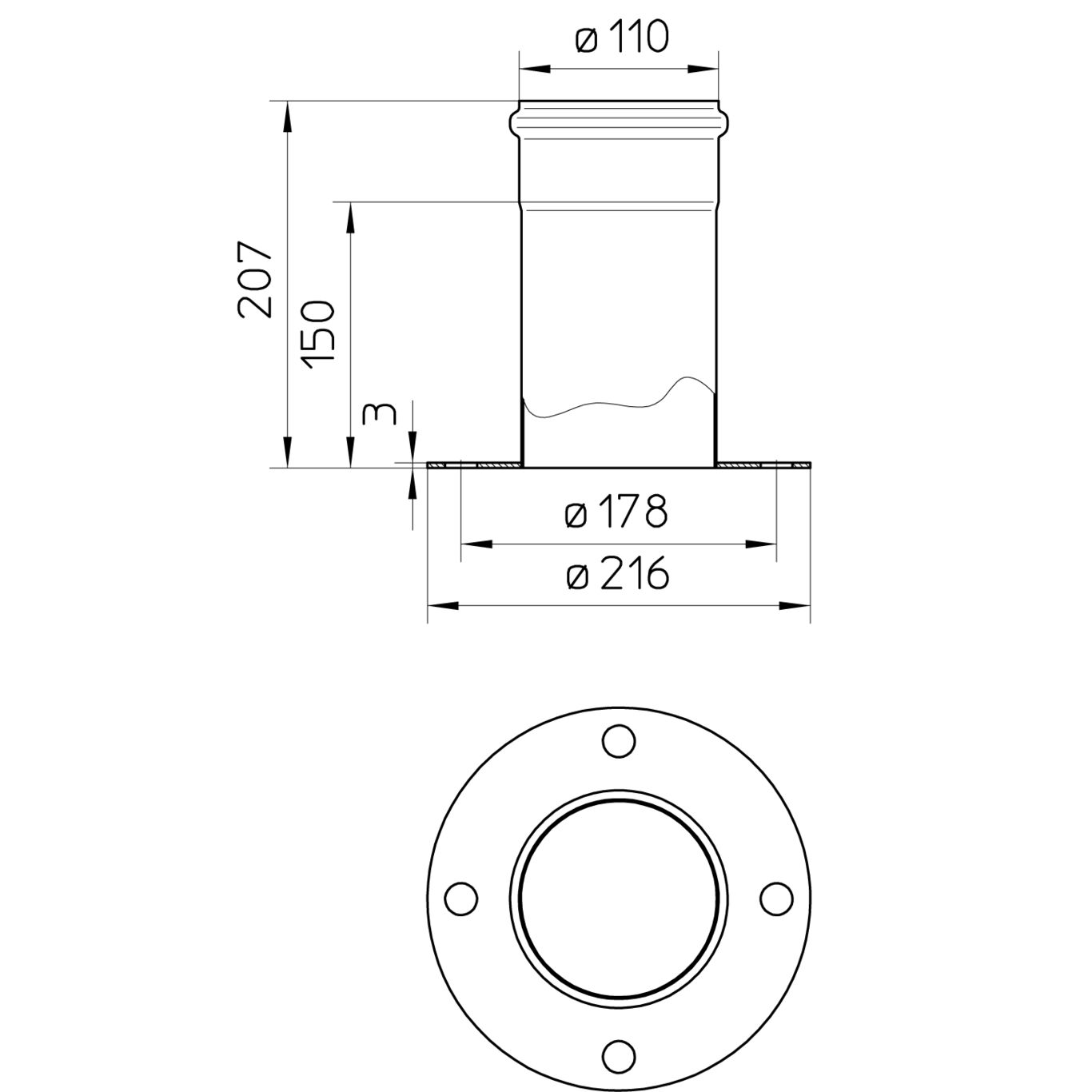

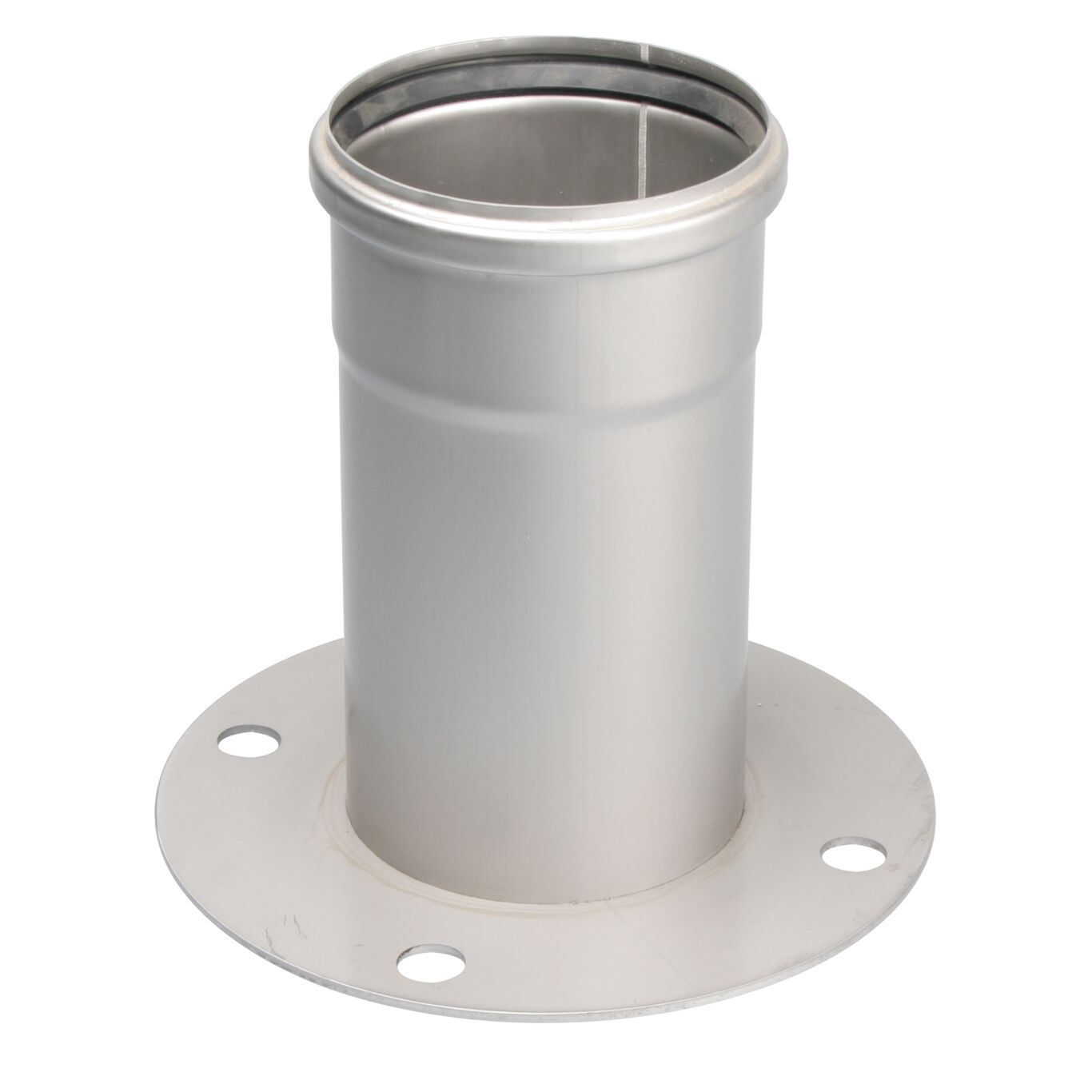

FLANGE ADAPTOR
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 150 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 207 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,74 |
| Weight (lbs) | 3,84 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
