UNIVERSAL FLANGE WITH SOCKET - (854.500.160 S)
×
![]()
Part Of the Series: Adaptor-flange-universal
Type no.: 854.500.160 S
EAN no.: 5705499138955
NRF no.: 2172732

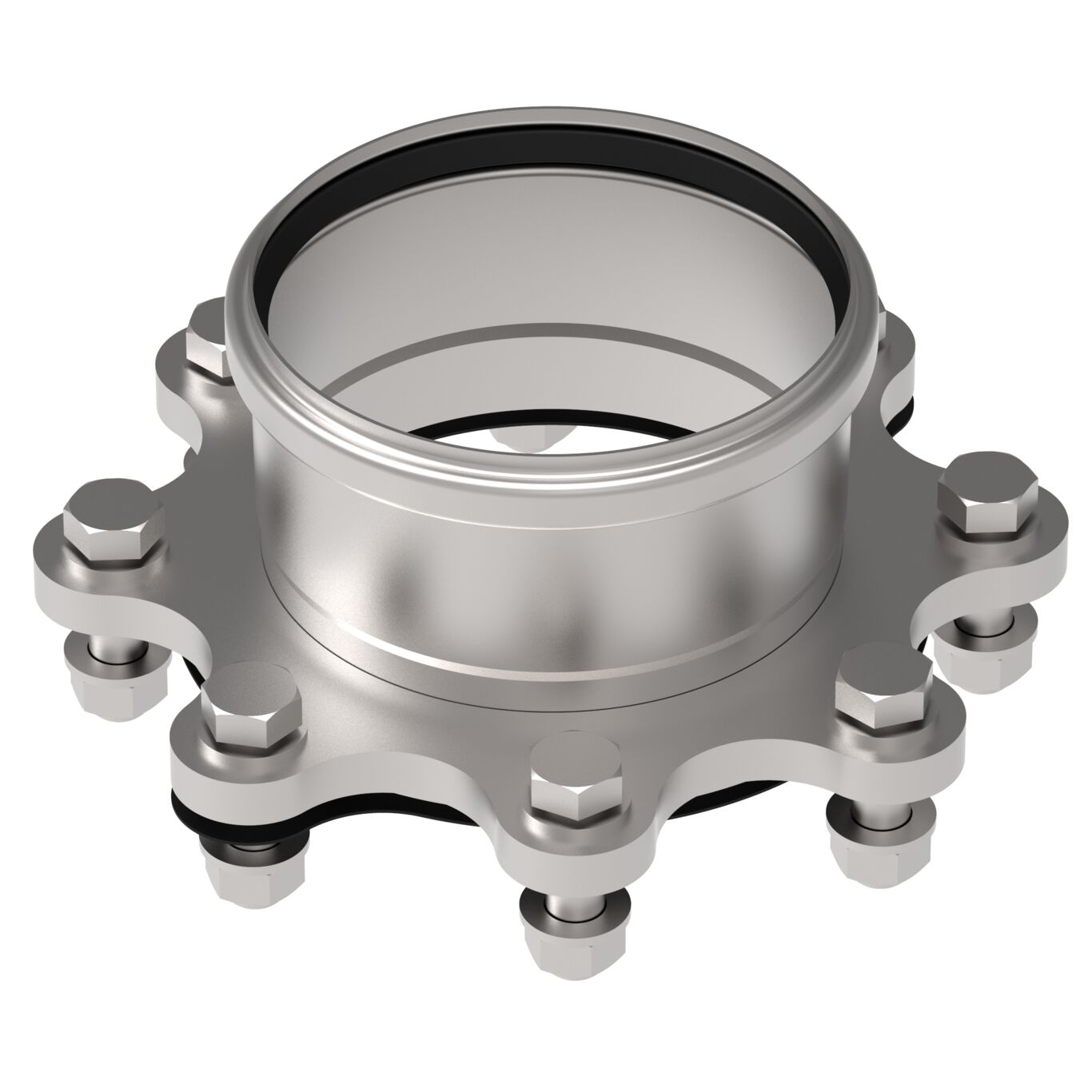

UNIVERSAL FLANGE WITH SOCKET

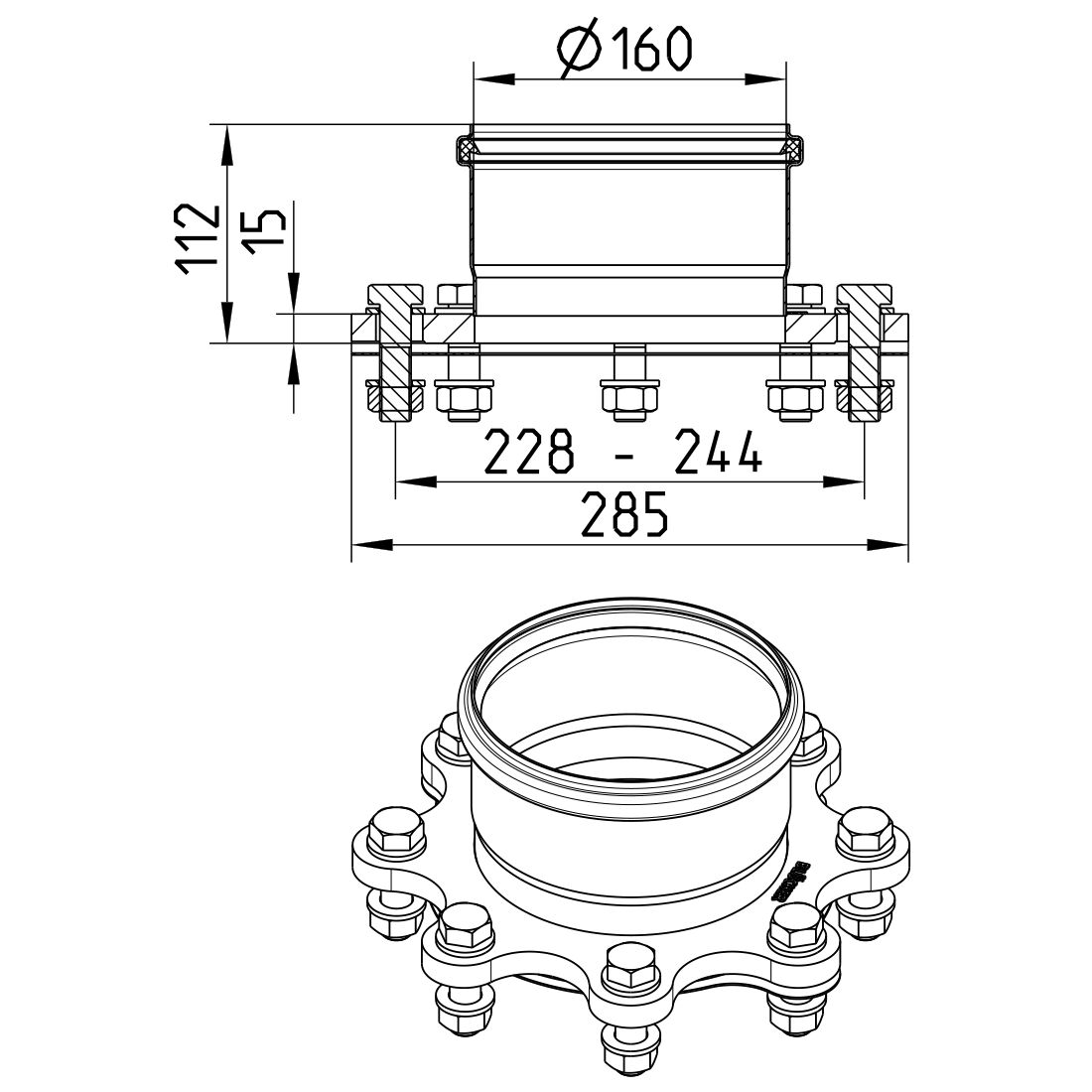

-Diameter: Ø160mm
-Equivalent to ANSI 6" / JIS150 5K-10K / DIN DN150 PN6-16
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 112 |
| Number of Bolts | 8 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 3,72 |
| Weight (lbs) | 8,2 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
