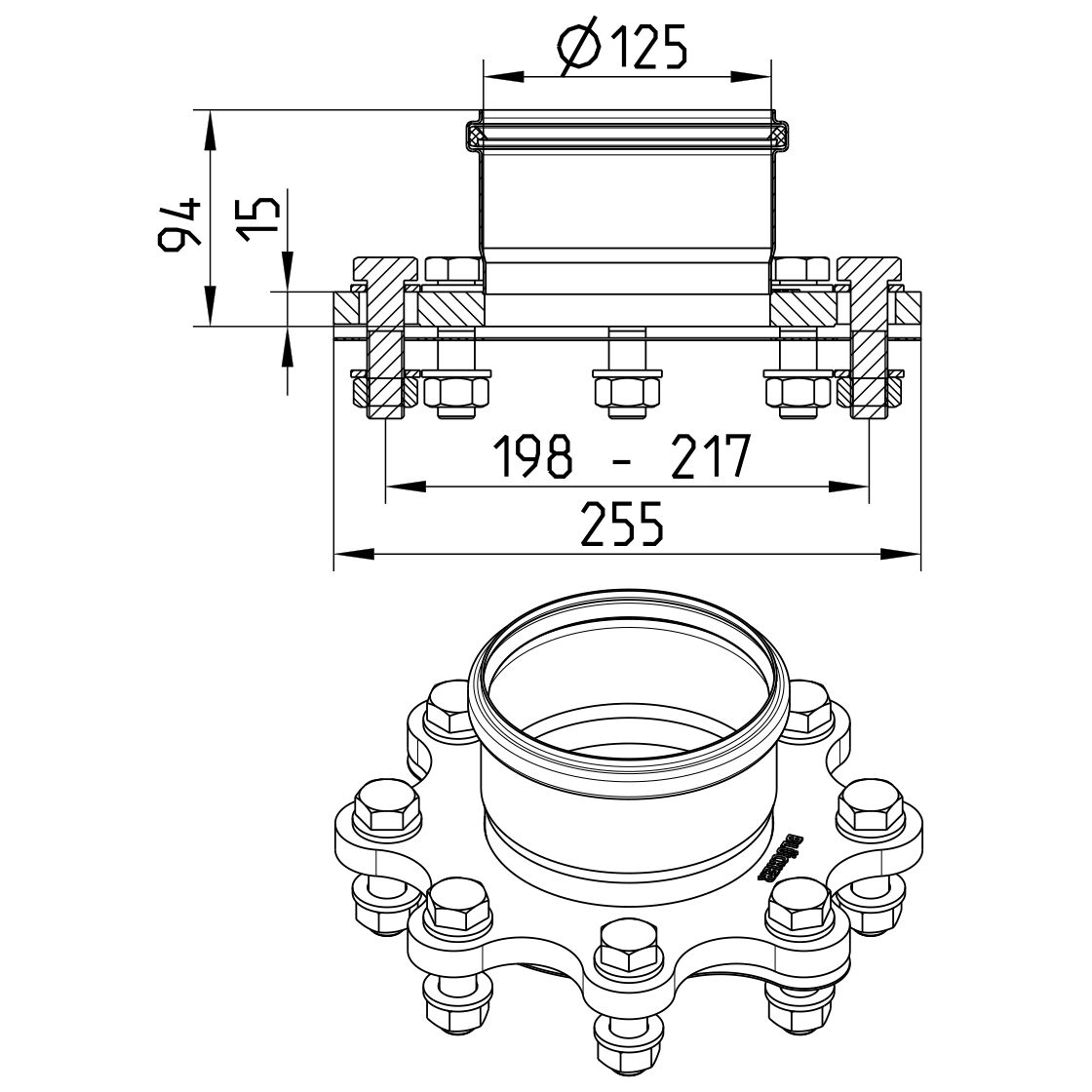

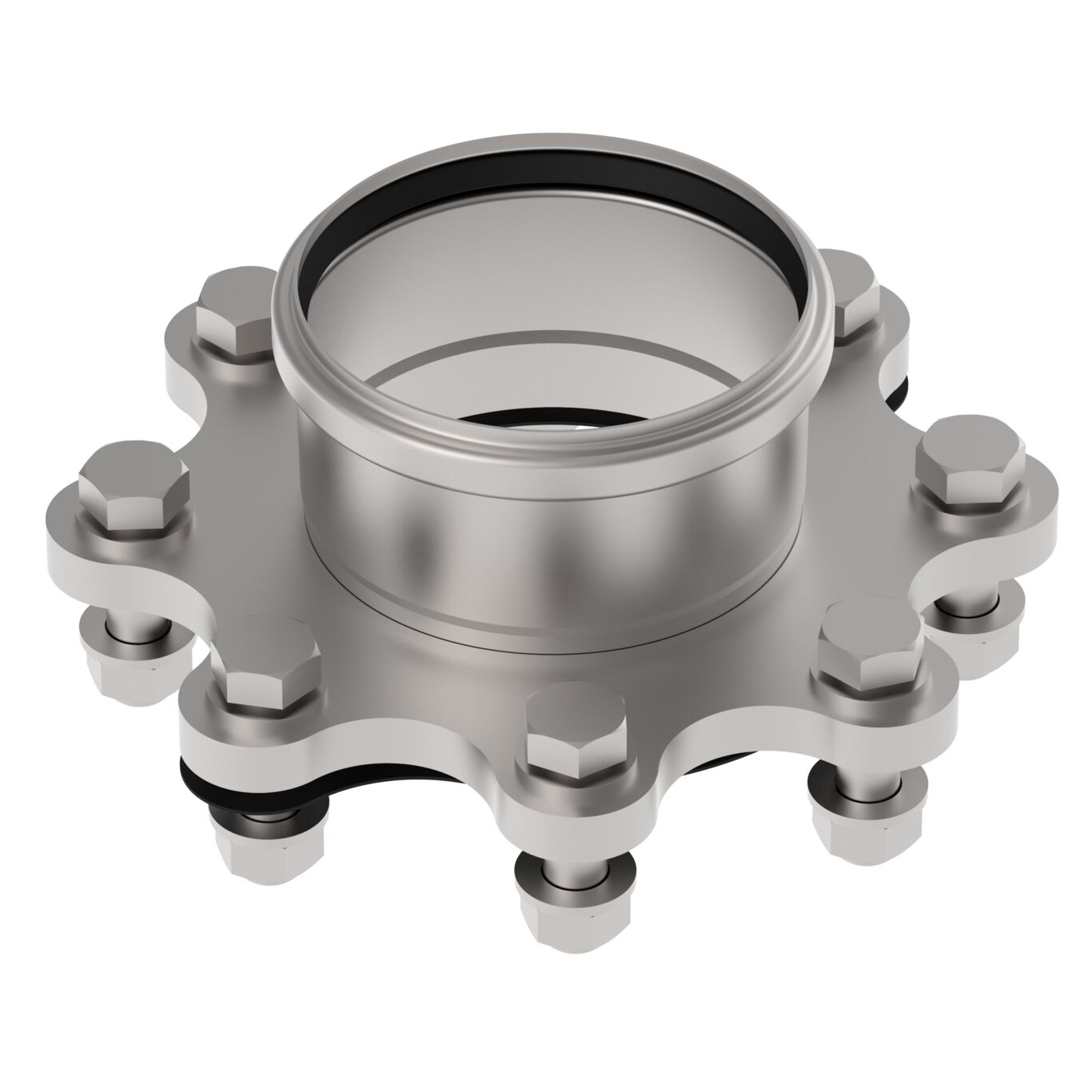

UNIVERSAL FLANGE WITH SOCKET - (854.500.125 S)
×
![]()
Part Of the Series: Adaptor-flange-universal
Type no.: 854.500.125 S
EAN no.: 5705499138931
NRF no.: 2172731
UNIVERSAL FLANGE WITH SOCKET
-Diameter: Ø125mm
-Equivalent to ANSI 5" / JIS125 5K-10K / DIN DN125 PN6-16
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 94 |
| Number of Bolts | 8 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 3,28 |
| Weight (lbs) | 7,23 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
