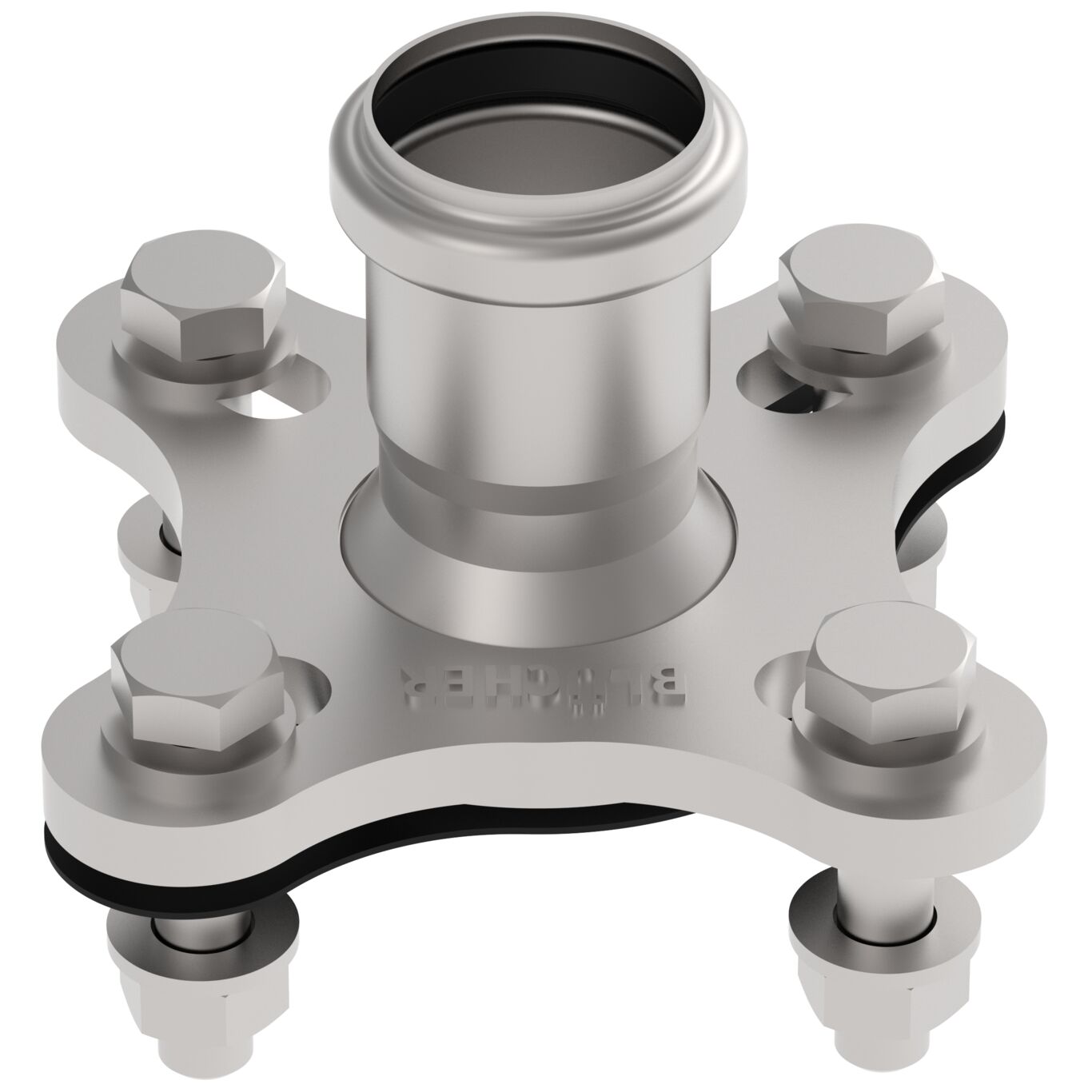

UNIVERSAL FLANGE WITH SOCKET - (854.500.040 S)
×
![]()
Part Of the Series: Adaptor-flange-universal
Type no.: 854.500.040 S
EAN no.: 5705499139594
UNIVERSAL FLANGE WITH SOCKET

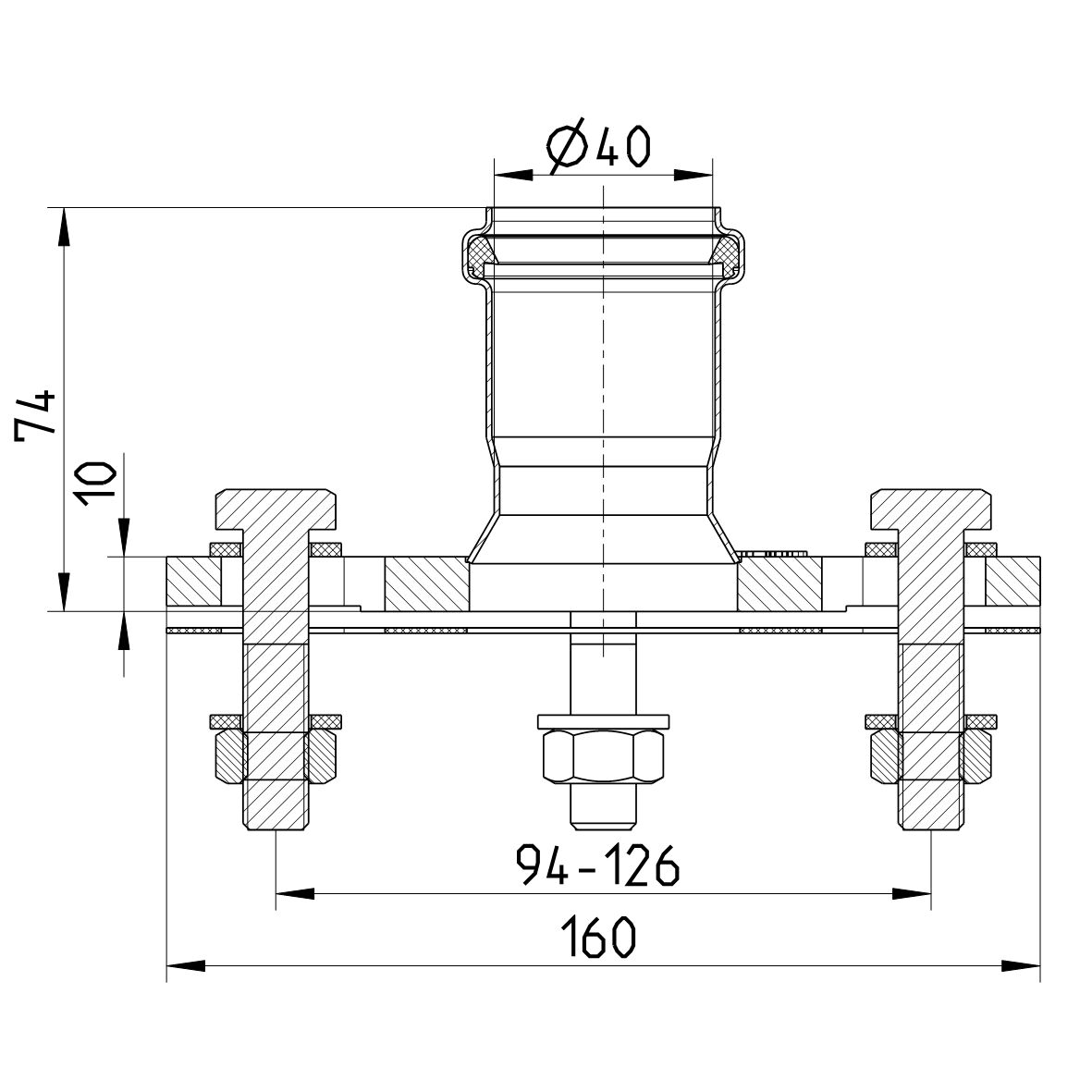

-Diameter: Ø40mm
-Equivalent to ANSI 2" / JIS40-50 5K-10K / DIN DN40-50 PN6-16
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 74 |
| Number of Bolts | 4 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,85 |
| Weight (lbs) | 1,87 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
