DIN FLANGE ADAPTOR WITH SPIGOT - (854.310.040 S)
×
![]()
Part Of the Series: Adaptor-flange-DIN
Type no.: 854.310.040 S
EAN no.: 5705499413236
NRF no.: 2172726

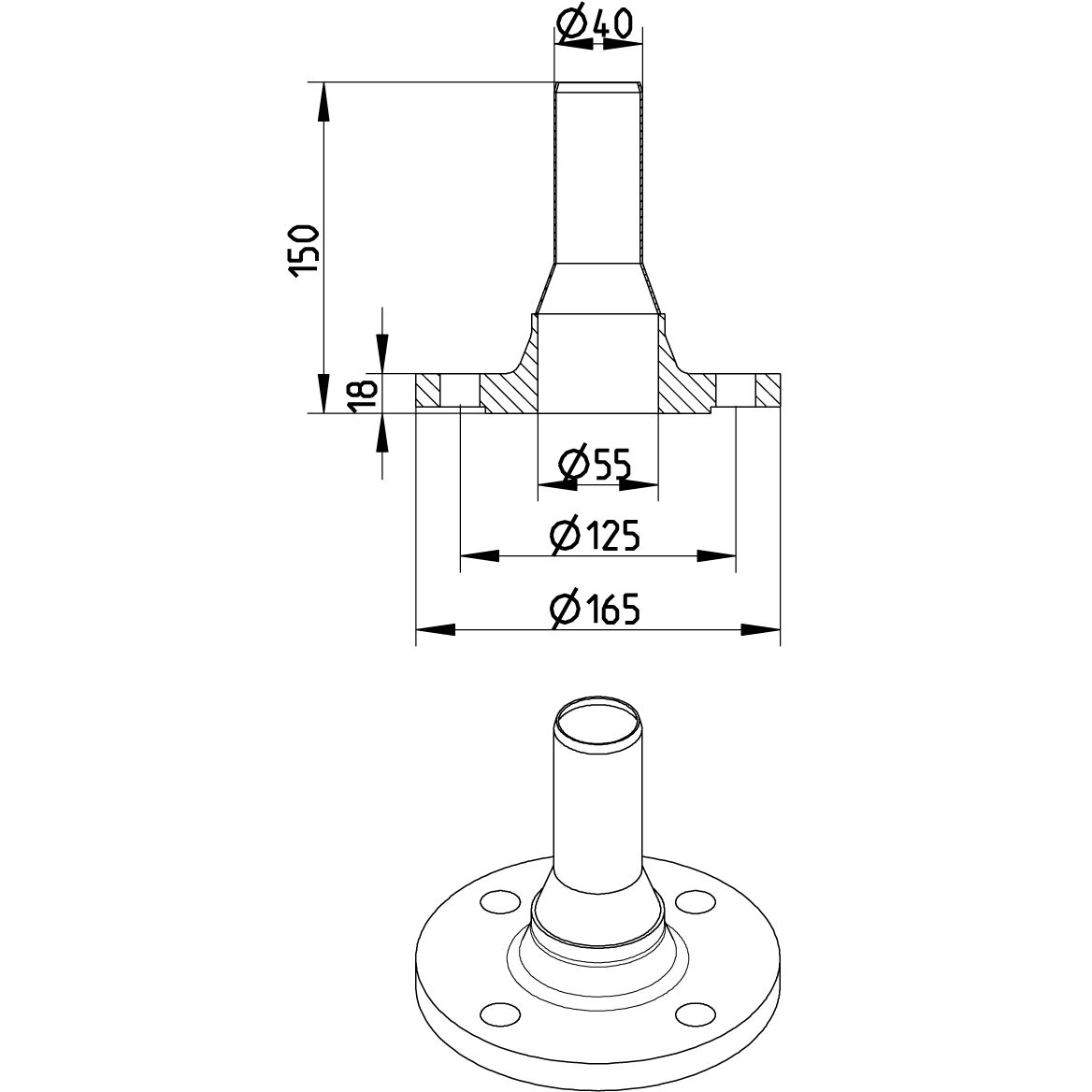

DIN FLANGE ADAPTOR WITH SPIGOT
-Diameter: Ø40mm
-Flange PN16/DN50, DIN 2633/EN1092-1
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 150 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 2,60 |
| Weight (lbs) | 5,73 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
