ANSI FLANGE ADAPTOR WITH SOCKET - (854.025.160 S)
×
![]()
Part Of the Series: Adaptor-flange-ANSI
Type no.: 854.025.160 S
EAN no.: 5705499409901
RSK no.: 1552187
NRF no.: 2172717
ANSI FLANGE ADAPTOR WITH SOCKET
-Diameter: Ø160mm
-Flange ANSI B16.5
-Stainless steel: AISI316L/EN1.4404

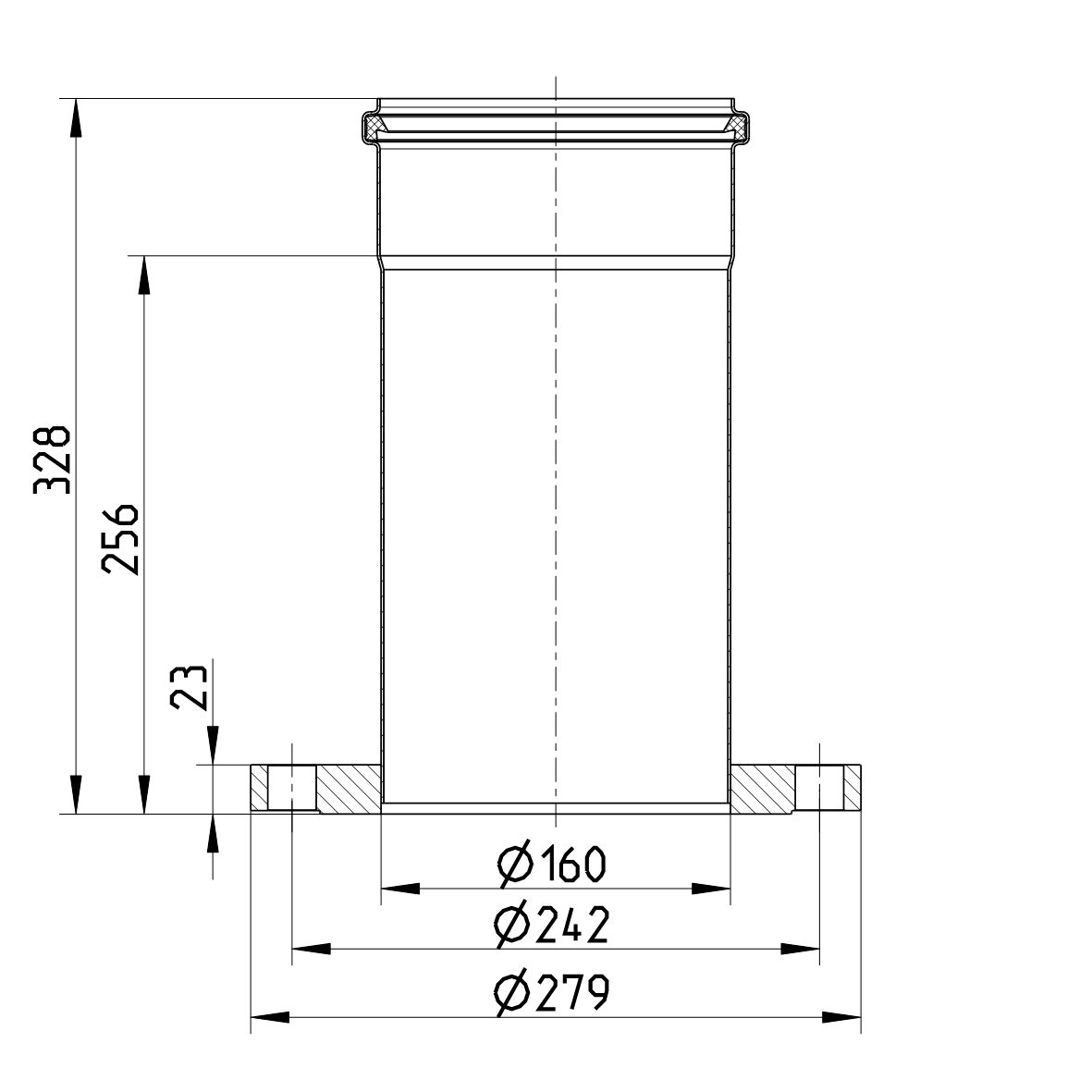

| Product Specification | |
|---|---|
| Length (mm) | 255 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 328 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 6,50 |
| Weight (lbs) | 14,33 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
