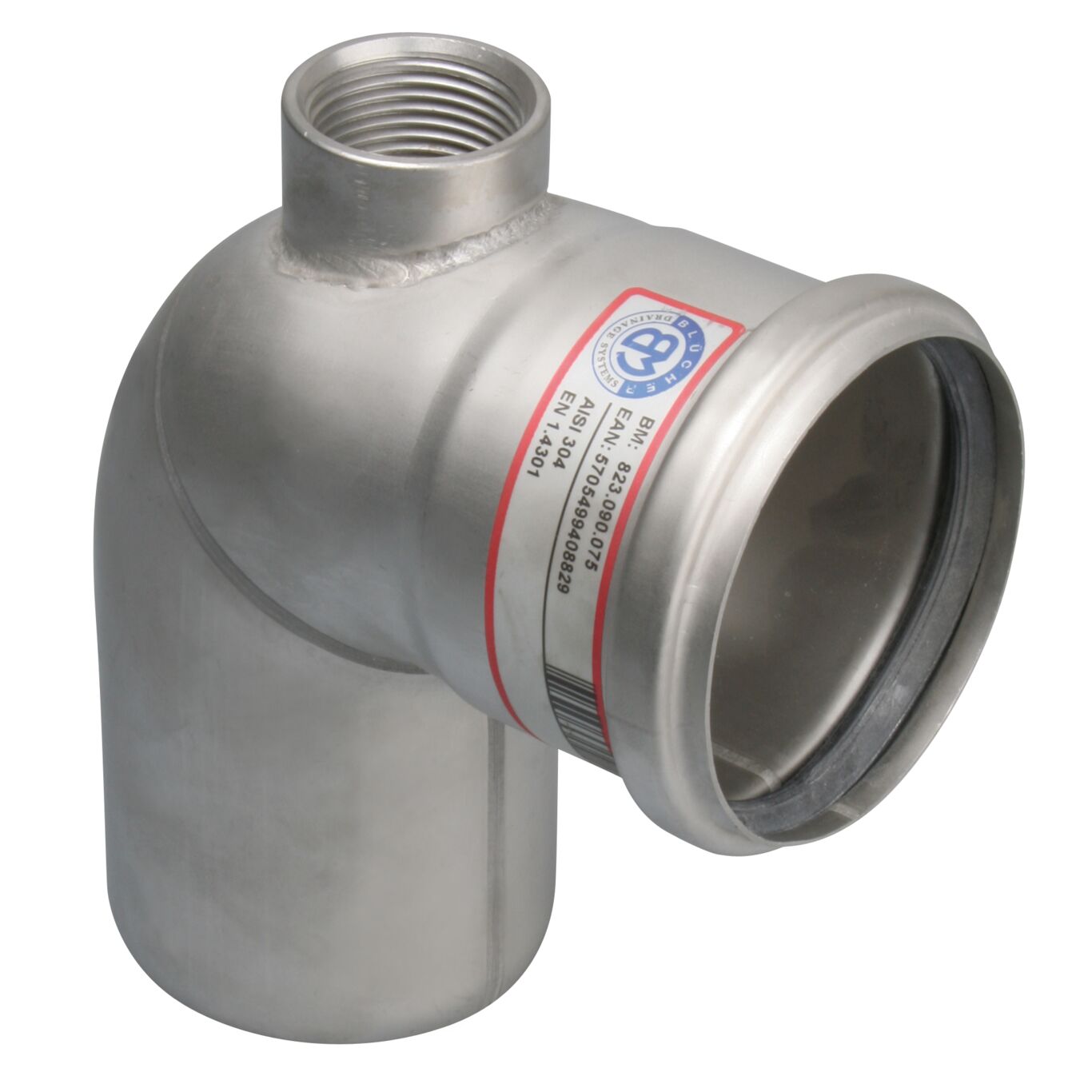

BEND 87.5° WITH ACCESS - (823.090.075)
×
![]()
Part Of the Series: Bend-87.5-BSP connection
Type no.: 823.090.075
EAN no.: 5705499408829
NRF no.: 2172326
BEND 87.5° WITH ACCESS
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,50 |
| Weight (lbs) | 1,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
