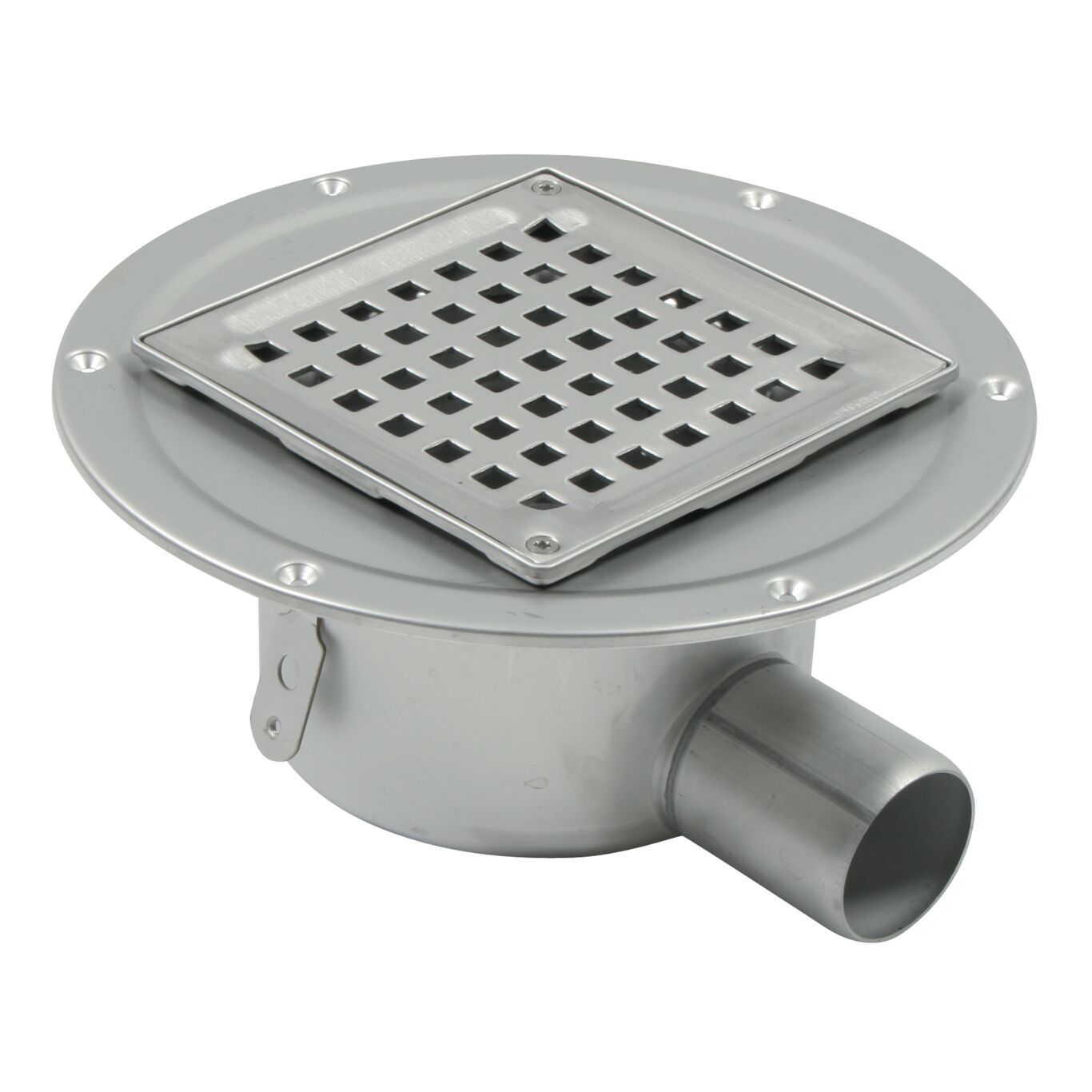

ADJUSTABLE SHOWER DRAIN SQUARE - (310.300.050)
×
![]()
Part Of the Series: Drain-Liquid membrane-145
Type no.: 310.300.050
EAN no.: 5705499124347
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 150 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (Inch) | 5¾x5¾ |
| Size (mm) | 145x145 |
| Weight (kg) | 1,58 |
| Weight (lbs) | 3,48 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
